The origin is the upstream Tenbyte CDN pulls from on cache miss. You can attach a hostname/IP or an S3-compatible bucket. The edge then caches the response per your rules.

​
Origin types

TypeWhen to use
HostnameWeb servers, app servers, load balancers, anywhere reachable by HTTP(S).
S3 BucketAWS S3, Cloudflare R2, DigitalOcean Spaces, Tenbyte T2 Object Storage, MinIO — anything S3-compatible.

​
Hostname origin

Origin
FieldNotes
Origin LabelInternal identifier for logs and dashboards.
Domain / IPFQDN (origin.example.com) or IP. The edge talks HTTPS by default.
Verify reachability before saving:
curl -sSI "https://origin.example.com/healthz"
# expect 200 OK
If the origin uses virtual hosting or has a TLS cert for a different name, set a custom Host header in Headers.

​

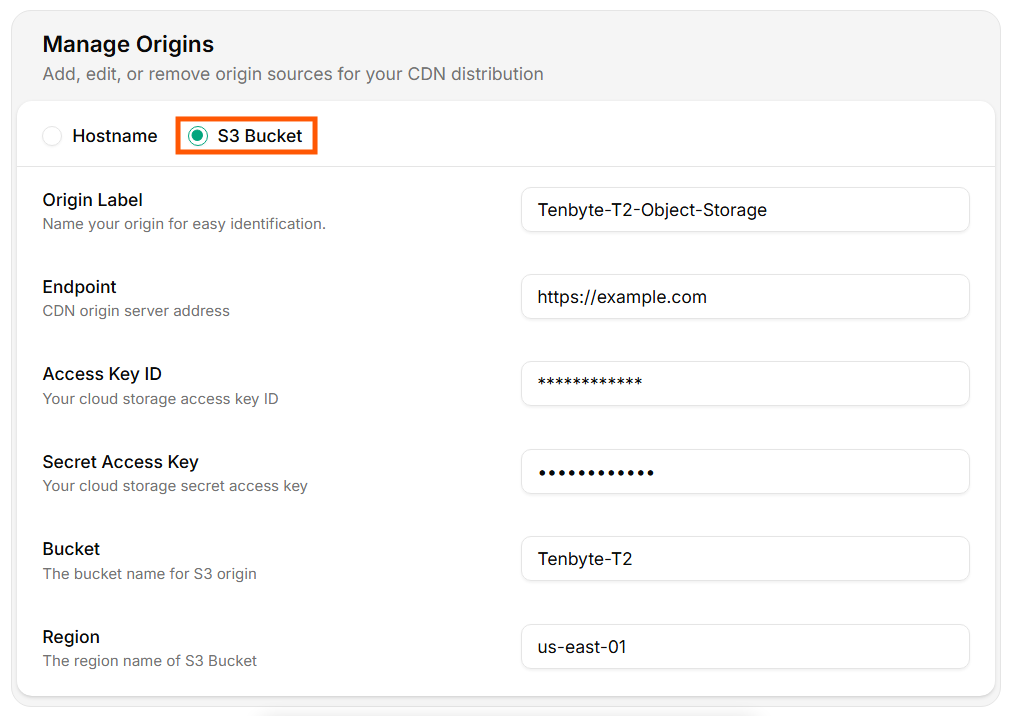

S3-compatible origin

Origin
FieldExample
Origin Labelprod-assets-s3
Endpoint / Hostnames3.us-east-1.amazonaws.com
Access Key IDfrom your IAM user / service account
Secret Access Keyinjected once, stored encrypted
Bucketbucket name only, no path
Regionbucket region (us-east-1, eu-west-1, etc.)

​
Endpoint cheat sheet

ProviderEndpoint
AWS S3 (regional)s3.<region>.amazonaws.com
Cloudflare R2<account-id>.r2.cloudflarestorage.com
DigitalOcean Spaces<region>.digitaloceanspaces.com
Backblaze B2 (S3 API)s3.<region>.backblazeb2.com
Tenbyte T2s3.tenbyte.io
MinIOyour MinIO host

​
Least-privilege IAM

Use a read-only key scoped to the bucket / prefix you’re serving. Example AWS policy:
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["s3:GetObject", "s3:ListBucket"],
      "Resource": [
        "arn:aws:s3:::my-bucket",
        "arn:aws:s3:::my-bucket/*"
      ]
    }
  ]
}

​
Verify before saving

aws s3 ls "s3://my-bucket/" \
  --endpoint-url "https://s3.us-east-1.amazonaws.com" \
  --region us-east-1

aws s3api get-object \
  --bucket my-bucket --key index.html \
  --endpoint-url "https://s3.us-east-1.amazonaws.com" \
  --region us-east-1 /tmp/out.html
If both work locally with the same key, the CDN will work too.

​

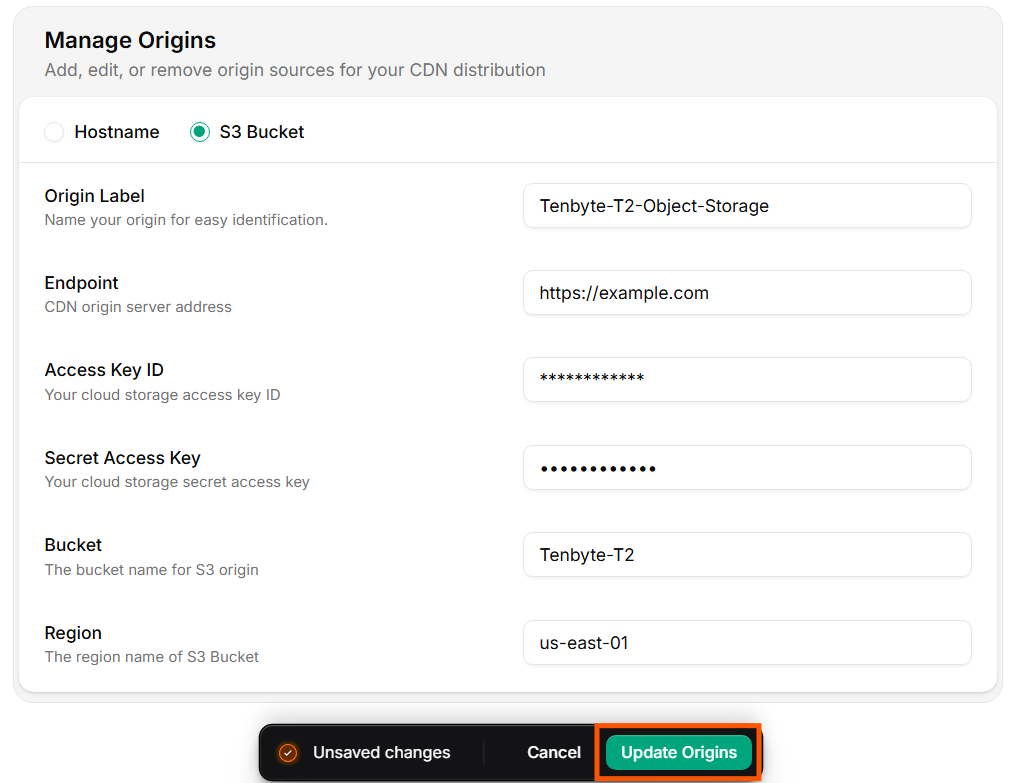

Update origins

After editing fields, click Update Origins.
Update your Origin
Distribution status flips to Updating until the new config rolls out (usually under a minute).

​
Manage via API

# Read current origin
curl -sS "https://api.tenbyte.io/cdn/distributions/$DISTRIBUTION_ID/origins" \
  -H "Authorization: Bearer $TENBYTE_API_TOKEN" | jq

# Replace origin
curl -X PUT "https://api.tenbyte.io/cdn/distributions/$DISTRIBUTION_ID/origins" \
  -H "Authorization: Bearer $TENBYTE_API_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "type": "s3",
    "label": "prod-assets-s3",
    "hostname": "s3.us-east-1.amazonaws.com",
    "bucket": "my-bucket",
    "region": "us-east-1",
    "access_key_id": "AKIA...",
    "secret_access_key": "..."
  }'
See CDN API reference for the exact field names.

​
Rotate S3 keys safely

  1. Create a new key pair on the IAM user (so two keys are active).
  2. Update the origin via the console or API with the new key.
  3. Confirm x-cache: HIT and a clean MISS → HIT transition for a fresh path.
  4. Deactivate / delete the old key in IAM.

​
Failure modes

SymptomLikely cause
502 Bad Gateway from CDNOrigin unreachable, port closed, TLS handshake failure.
403 from S3 originKey missing s3:GetObject or bucket policy denies.
404 for a known objectBucket name wrong, region mismatch, or path includes the bucket prefix twice.
Origin returns content but CDN serves nothingOrigin sent Cache-Control: private and Never Cache is also set. Check cache rules.
Wrong vhost servedHost header missing — configure it in Headers.
